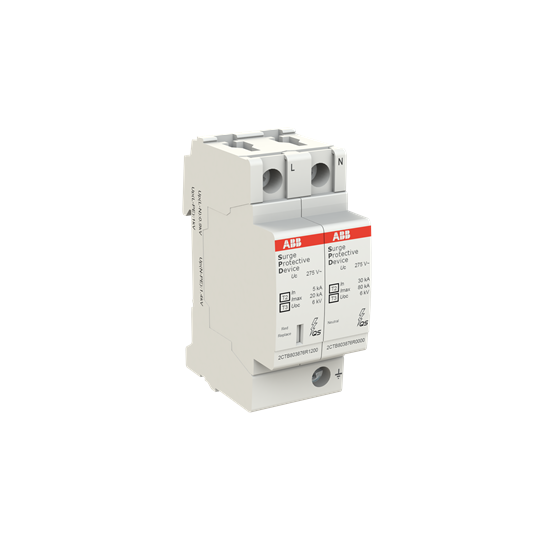

ABB 2CTB803972R1200 Surge Protective Device 2kA 2-P 20kA 400VAC Plug-In IP20

Product Code: 2CTB803972R1200

  • Surge protector with 400 VAC rating
  • Handles up to 20 kA current
  • Plug-in connection for easy install
  • IP20 protection, DIN rail mountable
  • Compact size: 35.6mm width, 88mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
0.9kV, 1.4kV
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
2P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
58mm
Height
88mm
Width
35.6mm
No. of Modules Width
2

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
