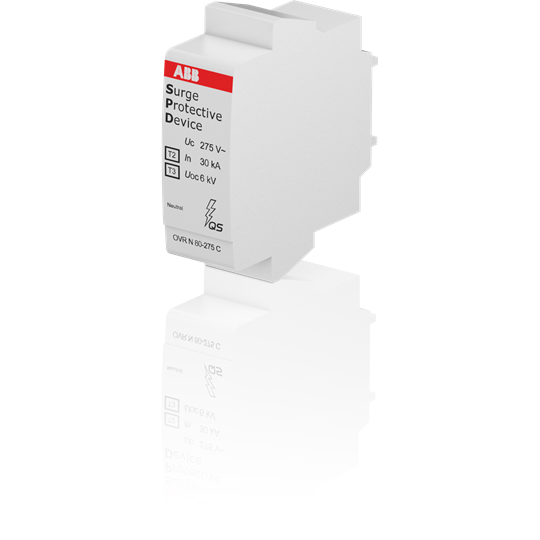

ABB 2CTB803876R0000 Surge Protective Device 6.25kA 80kA 230VAC Plug-In IP20

Product Code: 2CTB803876R0000

  • Surge protection for 230 VAC systems
  • Handles up to 80 kA current
  • Compact DIN rail mounting
  • IP20 protection rating
  • Plug-in connection for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1400V
Max. Discharge Current Imax (8/20µs)
80kA
Short Circuit Current Rating
0.1kA
Nominal Discharge Current Inom (8/20µs)
30kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
55.6mm
Height
57mm
Width
17.6mm
No. of Modules Width
1

Environmental

IP Rating
IP20
