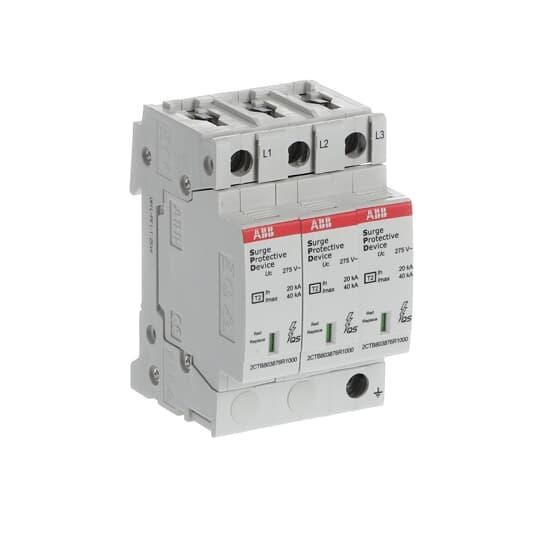

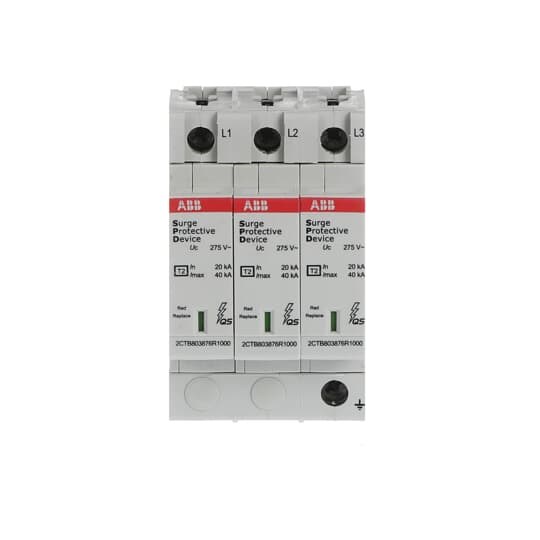

ABB 2CTB803873R2400 Surge Protective Device 2kA 3-P 40kA 230VAC Plug-In IP20

Product Code: 2CTB803873R2400

  • Surge protector for 230 VAC systems
  • Handles up to 40 kA current
  • Plug-in connection for easy setup
  • DIN rail mounting compatible
  • Compact size: 53.4 mm width
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1250V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
3P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
58mm
Height
88mm
Width
53.4mm
No. of Modules Width
3

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
