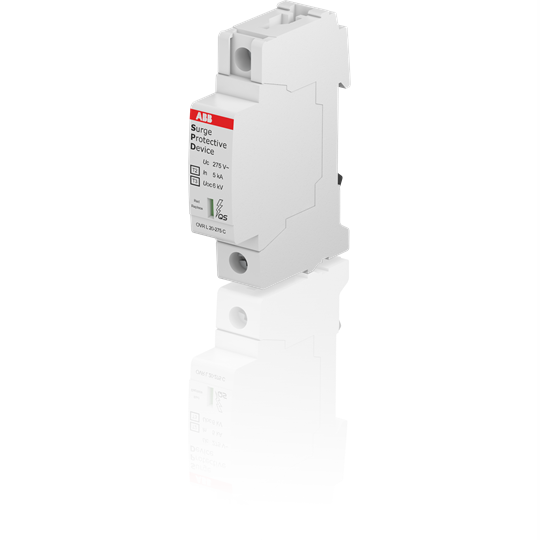

ABB 2CTB803871R2400 Surge Protective Device 2kA 1-P 20kA 400VAC Plug-In IP20

Product Code: 2CTB803871R2400

  • Rated for 400 VAC, 20 kA current
  • Plug-in connection on DIN Rail
  • IP20 protection rating
  • Compact size: 17.8mm width
  • Protects against transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1000V
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
100kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
1P
Max. Continuous Operating Voltage
275 V

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
58mm
Height
88mm
Width
17.8mm
No. of Modules Width
1

Environmental

IP Rating
IP20
