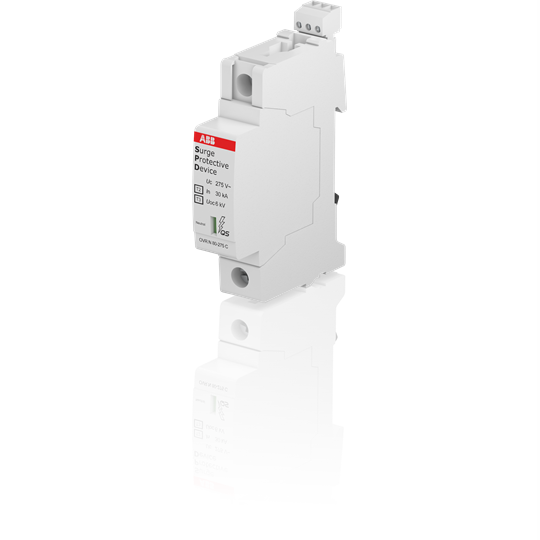

ABB 2CTB803871R1300 Surge Protective Device With Contact Signal 2kA 1-P 20kA 690VAC Plug-In IP20

Product Code: 2CTB803871R1300

  • Surge protector for 690 VAC systems
  • Handles up to 20 kA current
  • Compact DIN rail plug-in design
  • IP20 protection rating
  • Guards against transient overvoltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Qs
Brand
ABB
Application
To protect the systems against the transient overvoltage (lightning)

Electrical

Nominal Voltage
400V AC, 690V AC
Voltage Protection Level Up
1.4kV, 1.8kV
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
100kA
Alarm Contact
1 NO + 1 NC
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
1P
Max. Continuous Operating Voltage
440 V

Mechanical

Terminal Size
25 mm2

Dimensions & Physical Data

Depth
58mm
Height
95mm
Width
17.8mm
No. of Modules Width
1

Environmental

IP Rating
IP20

Documents

IPD Product Catalogue V17
