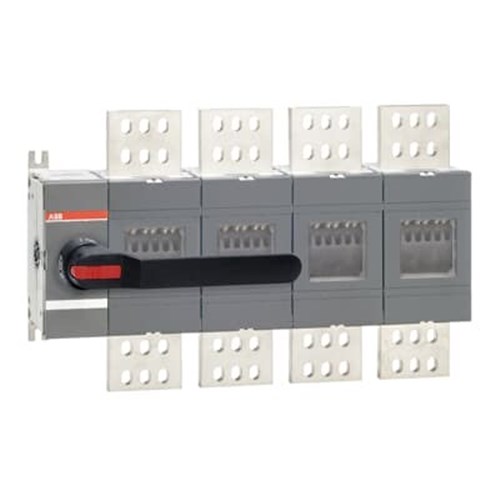

ABB 2500/4000A CONNECTION TYPE 2/3, 4P DISCONNECTOR OT2500E04P-135

Product Code: OT2500E04P-135

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Disconnector Switch
Brand
ABB
Series
OT
Application
Utilities, infrastructure, manufacturing

Electrical

Position of Line Terminals
Top In - Bottom Out Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1500V
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
for 0.3 s 80 / 100kA
Power Loss
per pole 85W; total 340W
Rated Current (In)
2500A / 4000A (connection dependent)
Special Functions
No
Mechanical Life
600
No. of Poles
4P

Dimensions & Physical Data

Depth
145.5mm
Height
376.5mm
Weight
22.3kg
Width
598.5mm

Environmental

Pollution Degree
3
IP Rating
Front IP00

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-1, -3

Accessories & Additional Information

Included Components
Handle, shaft and terminal bolt kit
