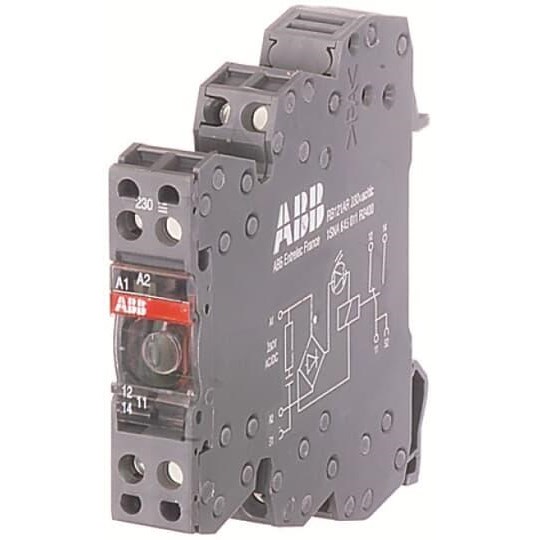

ABB 1SNA645540R1700 Interface Relay 12mm W Spring Terminal 48-60VAC/DC R600

Product Code: 1SNA645540R1700

  • Rated for 48-60 VAC/VDC
  • Compact 12 mm width
  • IP20 protection rating
  • Spring terminal type
  • Complies with UL 508, IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
48V to 60V AC
No. of Change-Over Contacts
2
Electrical Connection
Spring terminals
Rated Current (In)
0.001A to 8A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Contact Material
Gold Plated
Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
75mm
Height
67.5mm
Width
12mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
