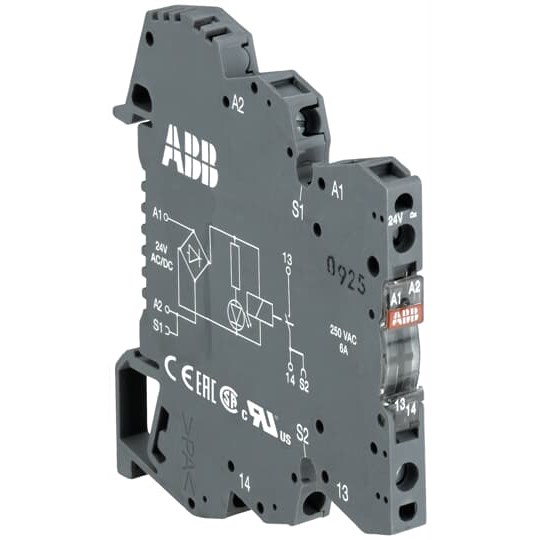

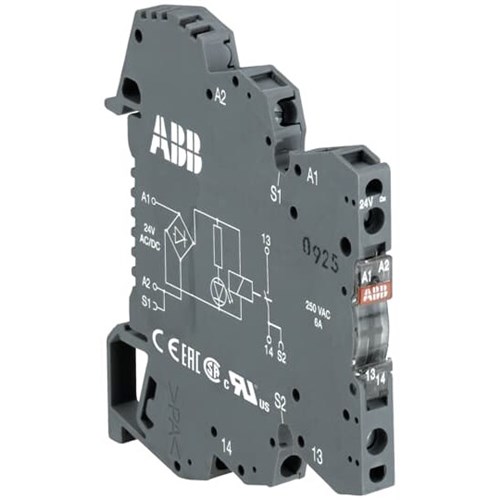

ABB 1SNA645525R2400 Spring Optocoupler 6mm W Spring Terminal 24VAC/DC R600

Product Code: 1SNA645525R2400

  • Operates on 24 VAC/VDC
  • Compact 6 mm width design
  • Solid state contact configuration
  • Spring terminal connection
  • Complies with UL 508 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Optocoupler
Brand
ABB
Series
R600

Electrical

Actuating Voltage
24V AC/DC
Electrical Connection
Spring terminals
Rated Current (In)
0.001A to 2A
Rated Voltage (Ur)
4.5V to 58V DC

Mechanical

Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
75mm
Height
67.5mm
Width
6mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
