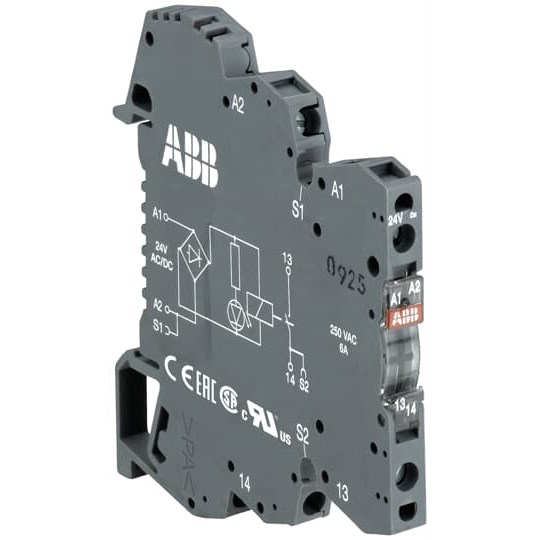

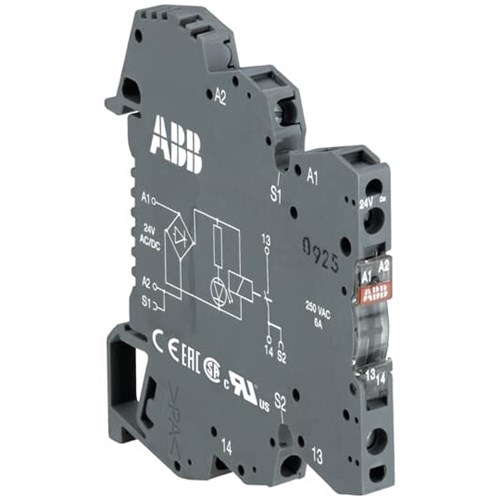

ABB 1SNA645505R0100 Interface Relay 6mm W Spring Terminal 24VAC/DC R600

Product Code: 1SNA645505R0100

  • Operates at 24 VAC/VDC
  • Compact 6 mm width design
  • IP20 protection rating
  • Spring terminal connections
  • Complies with UL, IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
24V AC/DC
No. of Change-Over Contacts
1
Electrical Connection
Spring terminals
Rated Current (In)
0.003A to 6A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Contact Material
Gold Plated
Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
75mm
Height
67.5mm
Width
6mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C
