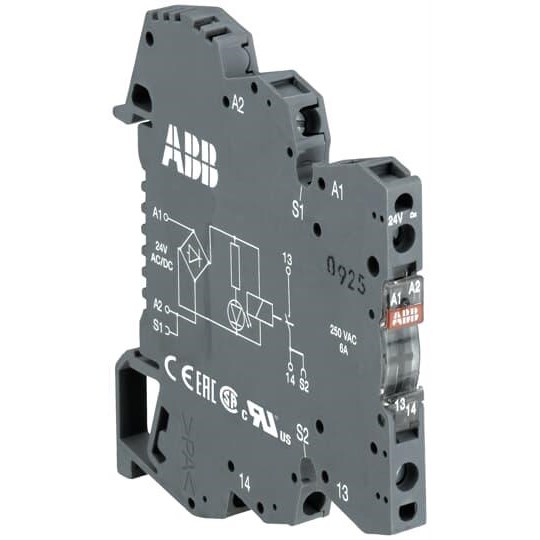

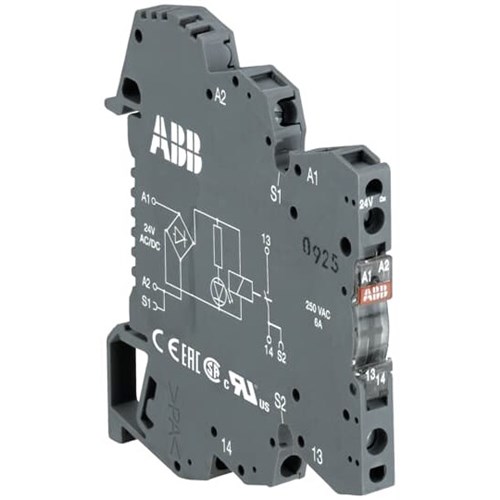

ABB 1SNA645036R2500 Interface Relay 6mm W Screw Terminal 5VDC R600

Product Code: 1SNA645036R2500

  • Rated Voltage: 5 VDC
  • 1CO SPDT contact configuration
  • Screw terminal connection
  • Compact size: 6 mm width, 70 mm length
  • Certified by CAN/CSA, IEC/EN, UL
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
5V DC
No. of Change-Over Contacts
1
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 6A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Contact Material
Gold Plated
Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
6mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
