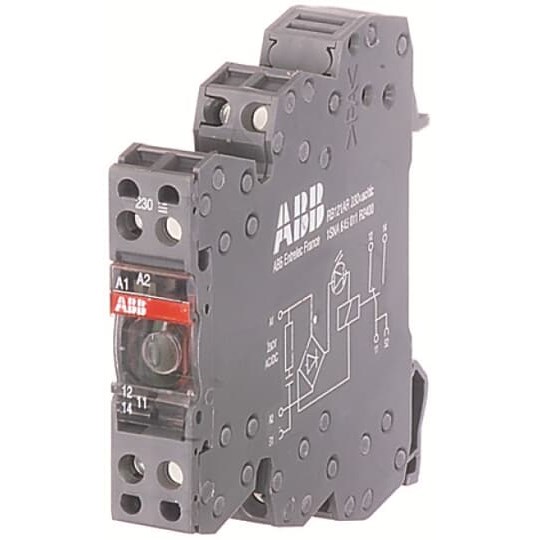

ABB 1SNA645020R0100 Interface Relay 12mm W Screw Terminal 60-230VAC/DC R600

Product Code: 1SNA645020R0100

  • Operates on 60-230 VAC/VDC
  • Compact 12 mm width
  • Silver Tin Oxide contacts
  • Complies with CAN/CSA, IEC/EN, UL standards
  • SPDT contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
60V to 230V AC/DC
No. of Change-Over Contacts
1
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 6A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
12mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
