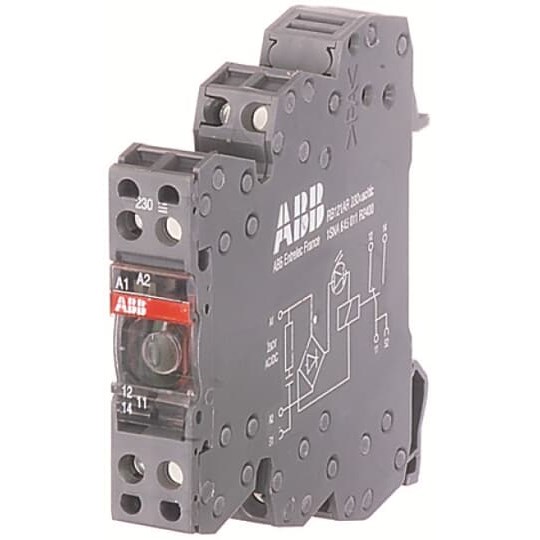

ABB 1SNA645019R0400 Interface Relay 12mm W Screw Terminal 24VAC/DC R600

Product Code: 1SNA645019R0400

  • Operates at 24 VAC/VDC
  • 1NO contact configuration
  • Compact size: 12mm width
  • Silver tin oxide contacts
  • Meets CAN/CSA, IEC/EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
Min: 12 VMax: 250 V AC
No. of N/C Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
250 V AC

Mechanical

Housing Material
UL 94 V0
Mounting
DIN rail

Dimensions & Physical Data

Depth
70 mm
Height
67.5 mm
Width
6 mm

Environmental

Operating Temperature
-20 ... +70 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
