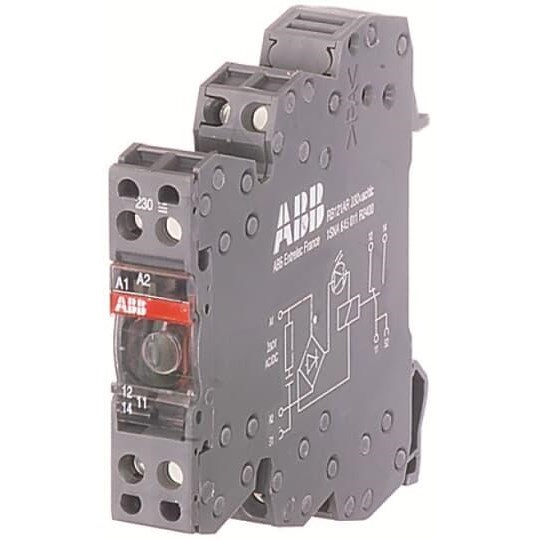

ABB 1SNA645018R0300 Interface Relay 12mm W Screw Terminal 24VAC/DC R600

Product Code: 1SNA645018R0300

  • Rated for 24 VAC/VDC operation
  • Compact design: 12mm width, 67.5mm height
  • Durable silver tin oxide contacts
  • Easy screw terminal connections
  • Complies with CAN/CSA, IEC/EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
24V AC/DC
No. of N/O Contacts
1
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 6A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
12mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C
