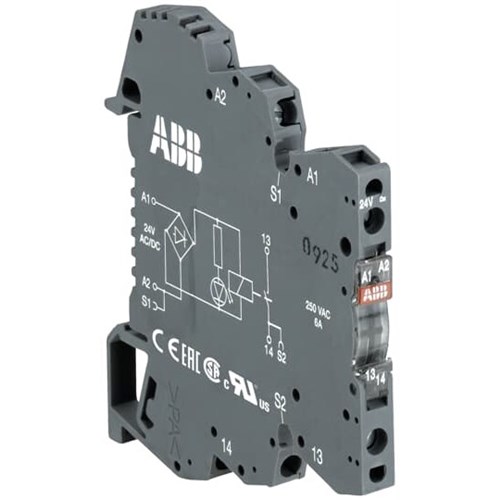

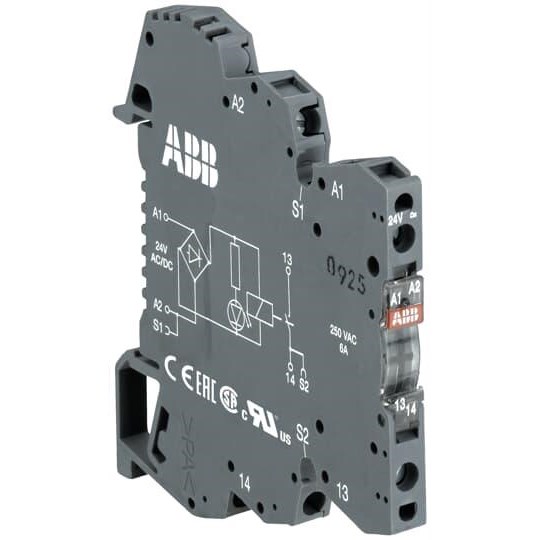

ABB 1SNA645014R2700 Interface Relay 6mm W Screw Terminal 24VAC/DC R600

Product Code: 1SNA645014R2700

  • Operates on 24 VAC/VDC for versatility
  • Compact design with 6 mm width
  • Features a 1NO contact configuration
  • Made with durable silver tin oxide contacts
  • Complies with CAN/CSA, IEC/EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
24V AC/DC
No. of N/O Contacts
1
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 6A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
6mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C
