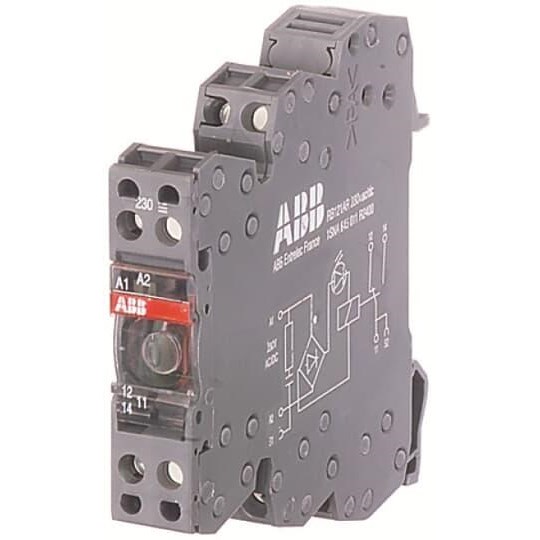

ABB 1SNA645013R2600 Interface Relay 12mm W Screw Terminal 230VAC/DC R600

Product Code: 1SNA645013R2600

  • Rated for 230 VAC/VDC
  • 2CO SPDT contact config
  • Compact: 12mm width, 67.5mm height
  • Screw terminal connections
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
230V AC/DC
No. of Change-Over Contacts
2
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 8A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Contact Material
Gold Plated
Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
12mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
