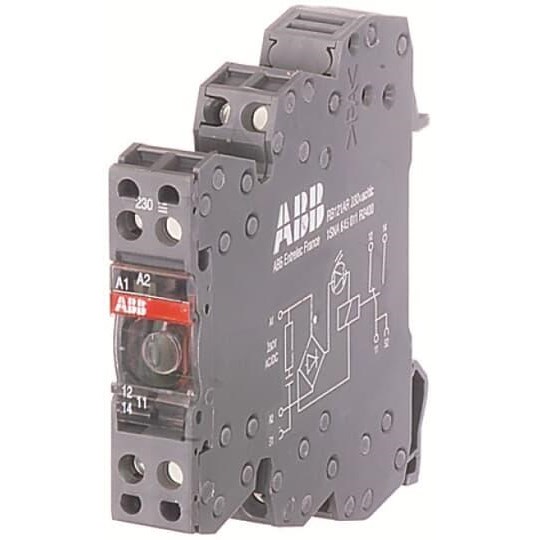

ABB 1SNA645012R2500 Interface Relay 12mm W Screw Terminal 24VAC/DC R600

Product Code: 1SNA645012R2500

  • Operates on 24 VAC/VDC for versatile use
  • Compact design with 12 mm width
  • IP20 protection rating ensures safety
  • Equipped with 2CO SPDT contacts
  • Meets UL, IEC, and CAN/CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
24V AC/DC
No. of Change-Over Contacts
2
Electrical Connection
Screw terminals
Rated Current (In)
0.01A to 8A
Rated Voltage (Ur)
5V to 250V AC

Mechanical

Contact Material
Gold Plated
Housing Material
UL 94 V0
Mounting
Din Rail

Dimensions & Physical Data

Depth
70mm
Height
67.5mm
Width
12mm

Environmental

IP Rating
IP20
Ambient Temperature
-40°C to 80°C

Documents

IPD Product Catalogue V17
