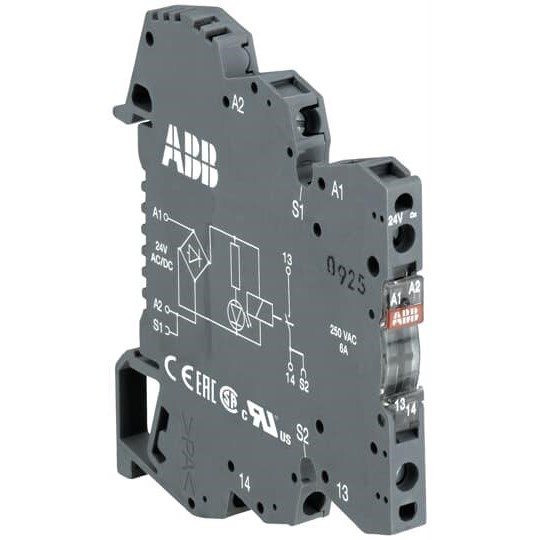

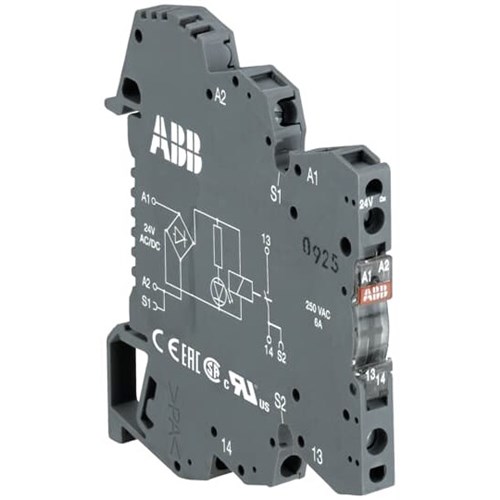

ABB 1SNA645001R0300 Interface Relay 6mm W Screw Terminal 24VAC/DC

Product Code: 1SNA645001R0300

  • Operates at 24 VAC/VDC
  • Compact design: 6 mm width
  • IP20 protection rating
  • Meets IEC/EN and UL standards
  • Lightweight: 0.02 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Interface Relay
Brand
ABB
Series
R600

Electrical

Actuating Voltage
Min: 12 VMax: 250 V AC
No. of Change-Over Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
250 V AC

Mechanical

Housing Material
UL 94 V0
Mounting
DIN rail

Dimensions & Physical Data

Depth
70 mm
Height
67.5 mm
Width
6 mm

Environmental

Operating Temperature
-20 ... +70 °C
IP Rating
IP20

Documents

IPD Product Catalogue V17
