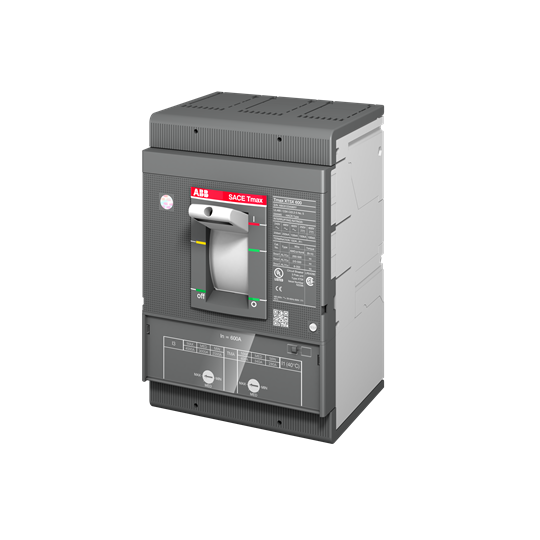

ABB 1SDA102557R1 Moulded Case Circuit Breaker 600/600VAC/VDC 300A 3-P 2100-3900A Front For: XT5L

Product Code: 1SDA102557R1

  • MCCB with 300 A rated current
  • Supports 600 VAC/VDC applications
  • Front connection, 3 poles design
  • IP20 protection rating
  • Complies with UL 489 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT5L
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Instantaneous Protection Adjustment Range
2100-3900A
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
MA
Frame Size Rating
XT5 (400 Frme)
Rated Current (In)
300A
Rated Frequency
50Hz to 60Hz
Trip Curve
Magnetic only
No. of Poles
3P

Mechanical

Frame Size
XT5 (400 Frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
4.49kg
Width
140mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 489

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
