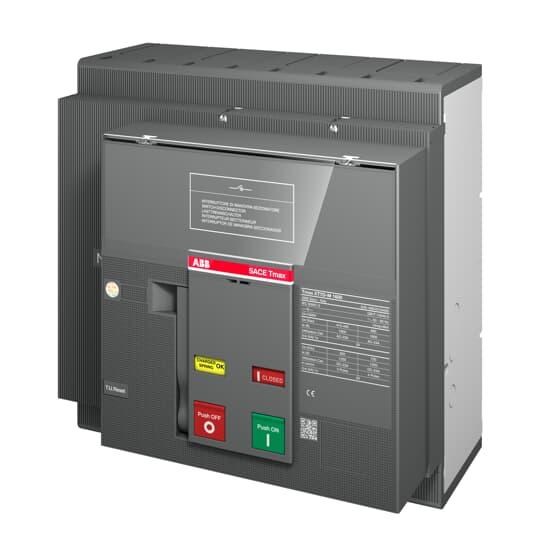

ABB 1SDA101915R1 Switch Disconnector IP20 1000A 4-P F Version 690/750VAC/DC

Product Code: 1SDA101915R1

  • Handles 1000 A current with ease
  • Supports up to 690/750 VAC/VDC
  • Front connection for easy access
  • IP20 protection against solid objects
  • Interlockable for added safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
20000A
Rated Uninterrupted Current (Iu)
1000A
Power Loss
111W
Rated Current (In)
1000A
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
178mm
Height
268mm
Weight
14kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
