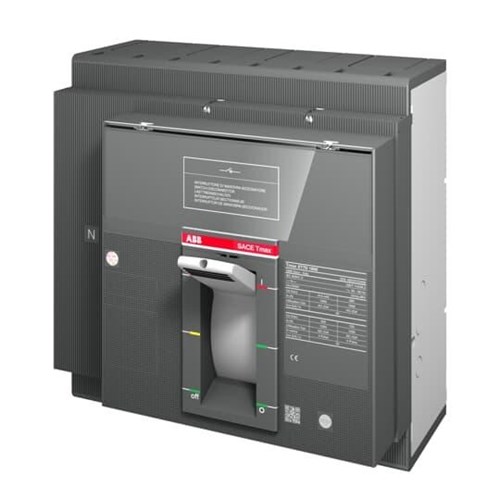

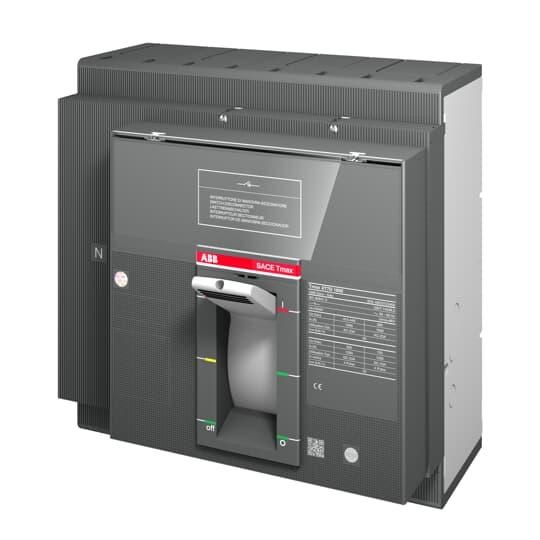

ABB 1SDA101911R1 Switch Disconnector IP20 1600A 4-P F Version 690/750VAC/DC

Product Code: 1SDA101911R1

  • 1600 A switch disconnector for high current needs
  • Compact size: 280x268x166 mm, weighs 12.5 kg
  • Handles up to 8 kV impulse voltage
  • Front connection with IP20 protection rating
  • Interlockable design for safety and control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
20000A
Rated Uninterrupted Current (Iu)
1600A
Power Loss
282W
Rated Current (In)
1600A
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
12.5kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
