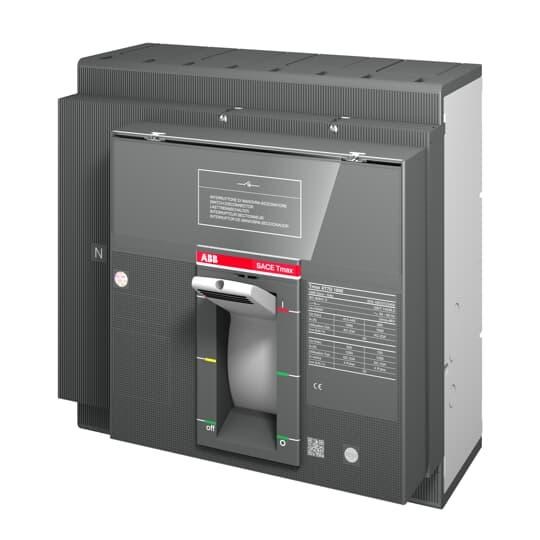

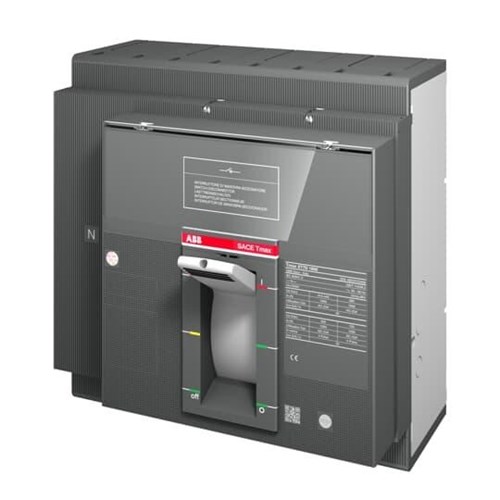

ABB 1SDA101910R1 Switch Disconnector IP20 1250A 4-P F Version 690/750VAC/DC

Product Code: 1SDA101910R1

  • Rated Current: 1250 A, robust performance
  • Compact size: 280x268x166 mm
  • High withstand voltage: 8 kV
  • Front connection for easy access
  • Interlockable for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
20000A
Rated Uninterrupted Current (Iu)
1250A
Power Loss
171W
Rated Current (In)
1250A
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
12.5kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
