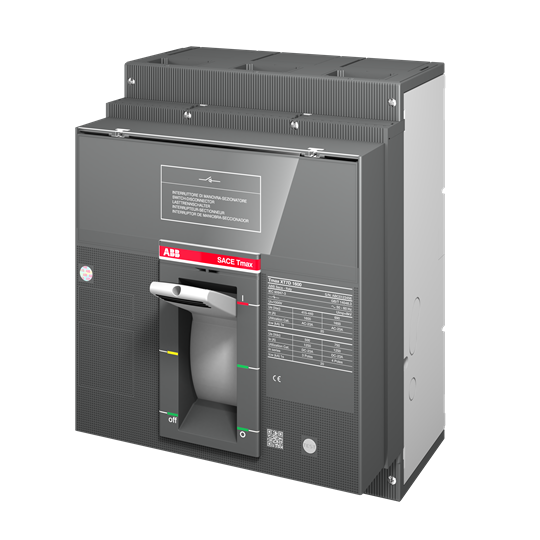

ABB 1SDA101907R1 Switch Disconnector IP20 1250A 3-P F Version 690/750VAC/DC

Product Code: 1SDA101907R1

  • Switch disconnector for 1250 A applications
  • Compact design: 210x268x166 mm
  • High impulse withstand voltage: 8 kV
  • Supports up to 690/750 VAC/VDC
  • IP20 protection with 3 poles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
20000A
Rated Uninterrupted Current (Iu)
1250A
Power Loss
171W
Rated Current (In)
1250A
Mechanical Life
10000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
9.7kg
Width
210mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE

Documents

IPD Product Catalogue V17
