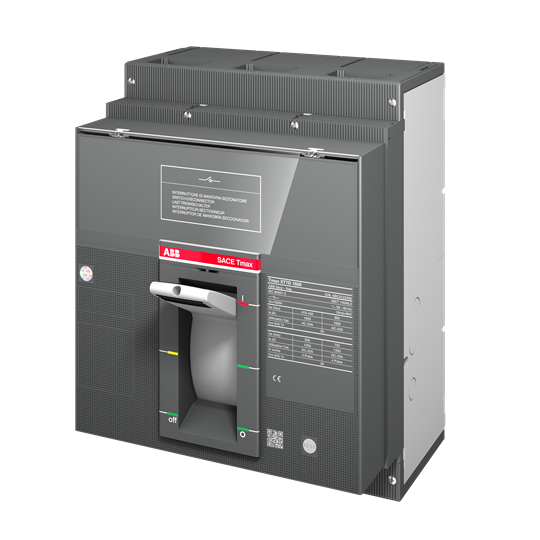

ABB 1SDA101906R1 Switch Disconnector IP20 1000A 3-P F Version 690/750VAC/DC

Product Code: 1SDA101906R1

  • Switch disconnector with 1000 A rated current
  • Compact design: 210mm width, 268mm height
  • High protection level: IP20 rating
  • Supports up to 690/750 VAC/VDC
  • Durable with 8 kV impulse withstand voltage
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
20000A
Rated Uninterrupted Current (Iu)
1000A
Power Loss
111W
Rated Current (In)
1000A
Mechanical Life
10000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
9.7kg
Width
210mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE

Documents

IPD Product Catalogue V17
