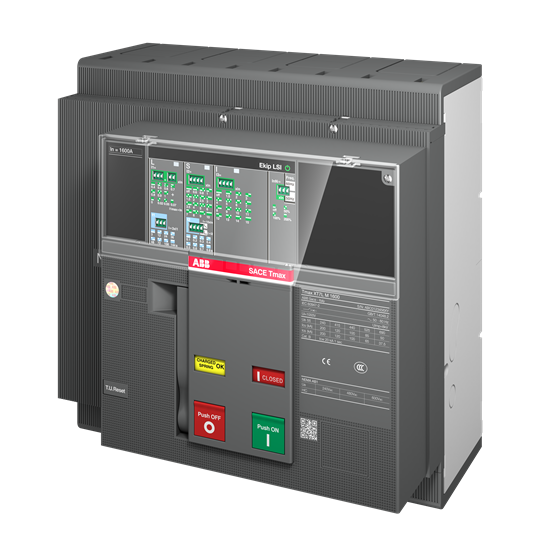

ABB 1SDA101715R1 Moulded Case Circuit Breaker 690VAC 1000A 4-P 70kA Ekip Dip LSI Front For: XT7H

Product Code: 1SDA101715R1

  • MCCB with 1000 A rated current
  • High breaking capacity of 70 kA
  • Ekip Dip LSI trip unit included
  • Front connection type, IP20 protection
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
37W
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
1000A
Trip Curve
Ekip Dip LSI
Terminal Type
Front
Electrical Life
3000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
178mm
Height
268mm
Weight
14kg
Width
280mm

Environmental

Operating Temperature
-40°C to 125°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
42kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
42kA
