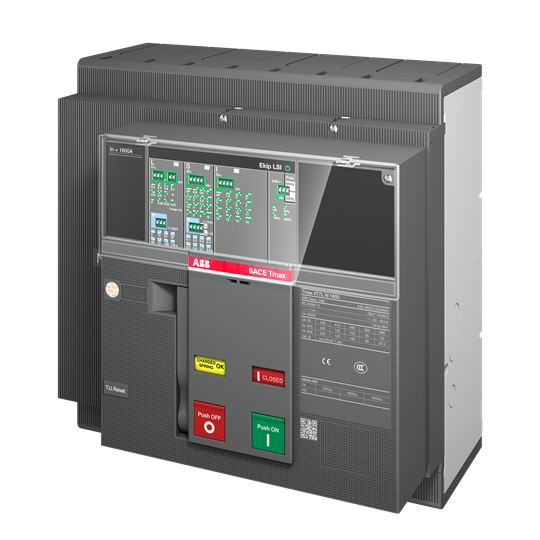

ABB 1SDA101661R1 Moulded Case Circuit Breaker 690VAC 1600A 4-P 50kA Ekip Dip LSI Front For: XT7S

Product Code: 1SDA101661R1

  • MCCB with 1600 A rated current capacity
  • Handles up to 690 VAC and 1000 V insulation
  • Ekip Dip LSI trip unit for precise control
  • Breaking capacity of 50 kA ensures safety
  • Compact design with IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT7MS
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Instantaneous Protection Adjustment Range
1...10xIn
Long Time Overload Protection Adjustment Range
0.4...1xIn
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
Electronic
Frame Size Rating
XT7 1600 Frme
Rated Current (In)
1600A
Rated Frequency
50Hz to 60Hz
Trip Curve
Ekip Dip LSI
Electrical Life
3000
No. of Poles
4P

Mechanical

Frame Size
XT7 1600 Frme
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
12.5kg
Width
280mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA

Documents

IPD Product Catalogue V17
