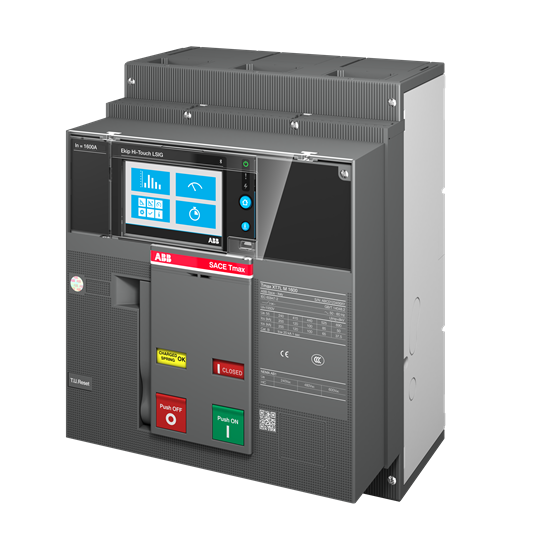

ABB 1SDA101385R1 Moulded Case Circuit Breaker 690VAC 1600A 3-P 50kA Ekip Dip LSI Front For: XT7S

Product Code: 1SDA101385R1

  • Rated current of 1600 A for high capacity
  • Withstands impulse voltage up to 8 kV
  • Features Ekip Dip LSI trip unit
  • Breaking capacity of 50 kA ensures safety
  • IP20 protection with front connection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
94W
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
1600A
Trip Curve
Ekip Touch LSIG
Terminal Type
Front
Electrical Life
3000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
178mm
Height
268mm
Weight
9.7kg
Width
210mm

Environmental

Operating Temperature
-40°C to 125°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
30kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
30kA
