Specifications

Product Type Automatic Circuit Breaker	Brand ABB	Series SACE Tmax XT
Application Power Distribution

AC Power Loss Per Pole at In 24 W	Max. Rated Operation AC Voltage (Ue) 690 V AC	Rated Insulation Voltage (Ui) 1000 V
Type of Protection Trip Unit EL	Rated Current (In) 1000 A	Trip Curve Ekip Dip LSI
Terminal Type Front	Electrical Life 3000 cycles	Mechanical Life 10000 cycles
No. of Poles 4P

Mechanical Connection

G1 / 2" EN 837

Depth 166 mm	Height 268 mm	Weight 12500 g
Width 280 mm

Operating Temperature

-40 to 125 °C

IP Rating

IP68

Standards and Approvals

IEC 60947-2

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz 70 kA	Rated Service Short Circuit Breaking Capacity (Ics) 690V AC 42 kA	Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC 42 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC 42 kA	Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC 42 kA

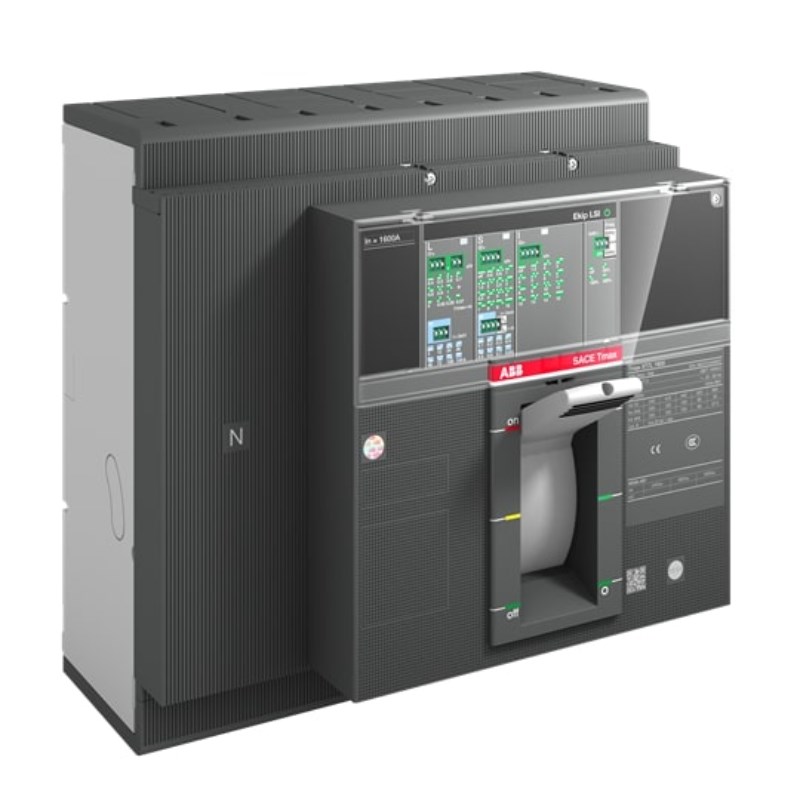

ABB 1SDA101174R1 Moulded Case Circuit Breaker 690VAC 800A 4-P 70kA Ekip Dip LSI Front For: XT7H
