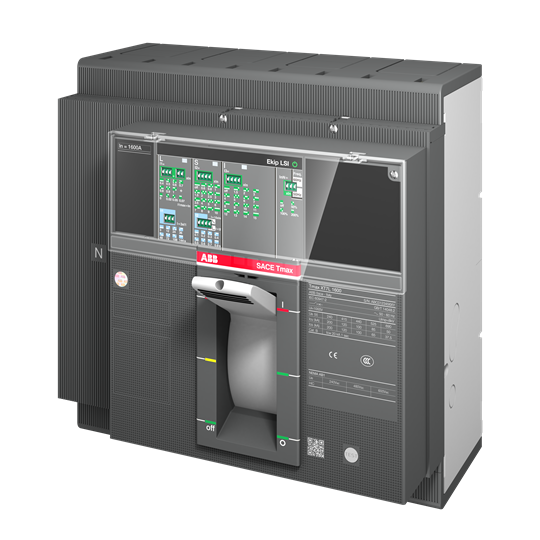

ABB 1SDA101121R1 Moulded Case Circuit Breaker 690VAC 1600A 4-P 50kA Ekip Dip LSI Front For: XT7S

Product Code: 1SDA101121R1

  • MCCB rated at 1600 A for high current applications
  • Rated voltage of 690 VAC with 8 kV impulse withstand
  • Ekip Dip LSI trip unit ensures reliable protection
  • Breaking capacity of 50 kA for enhanced safety
  • Front connection type with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
94W
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
1600A
Trip Curve
Ekip Dip LSI
Terminal Type
Front
Electrical Life
3000 cycles
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
12.5kg
Width
280mm

Environmental

Operating Temperature
-40°C to 125°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
30kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
30kA
