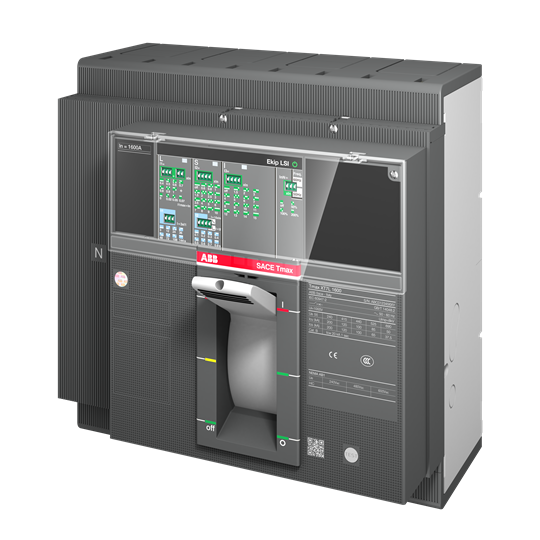

ABB 1SDA101116R1 Moulded Case Circuit Breaker 690VAC 1250A 4-P 50kA Ekip Dip LSI Front For: XT7S

Product Code: 1SDA101116R1

  • MCCB with 1250 A rated current
  • 8 kV impulse withstand voltage
  • Ekip Dip LSI trip unit for reliability
  • 50 kA breaking capacity ensures safety
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
57W
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
1250A
Trip Curve
Ekip Dip LS/I
Terminal Type
Front
Electrical Life
3000 cycles
Mechanical Life
10000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
17.67kg
Width
280mm

Environmental

Operating Temperature
-40°C to 125°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
30kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
30kA
