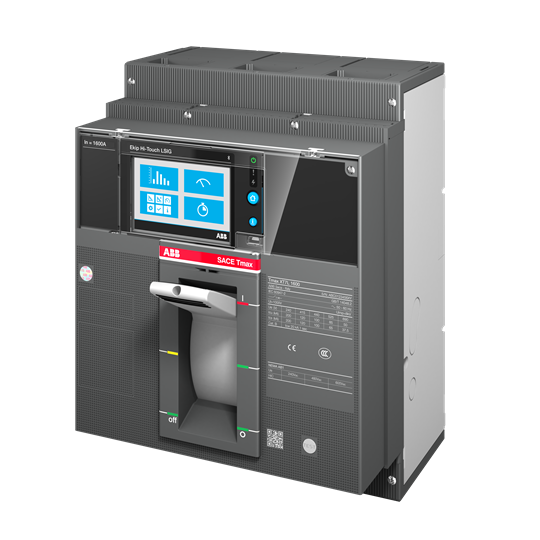

ABB 1SDA100967R1 Moulded Case Circuit Breaker 690VAC 1000A 3-P 120kA Ekip Dip LSI Front For: XT7L

Product Code: 1SDA100967R1

  • MCCB with 1000 A rated current
  • High breaking capacity of 120 kA
  • Ekip Dip LSI trip unit for reliability
  • Front connection type for easy access
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
37W
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
1000A
Trip Curve
Ekip Touch LSI
Terminal Type
Front
Electrical Life
3000 cycles
Mechanical Life
10000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
166mm
Height
268mm
Weight
9.7kg
Width
210mm

Environmental

Operating Temperature
-40°C to 125°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
50kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
50kA
