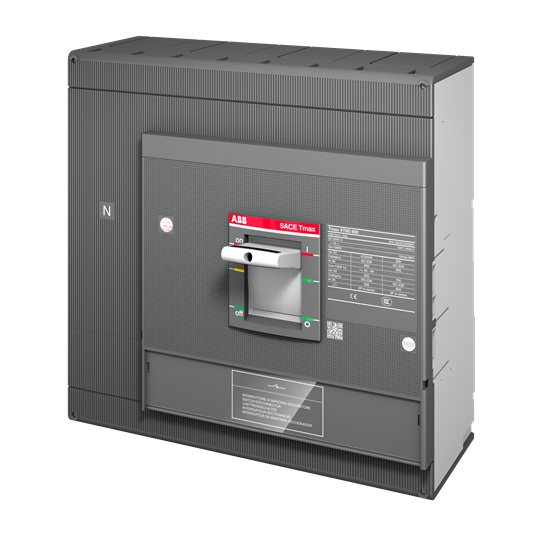

ABB 1SDA100786R1 Switch Disconnector IP20 800A 4-P 690/750VAC/DC

Product Code: 1SDA100786R1

  • 800 A switch disconnector for reliable operation
  • Supports up to 690/750 VAC/VDC
  • Compact size: W280 x H268 x D103.5 mm
  • 4-pole design with front connection
  • IP20 protection rating for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Operational Current AC23-A (Ie)
800A
Rated Short Time Withstand Current (Icw)
10000A
Rated Uninterrupted Current (Iu)
800A
Power Loss
162.6W
Rated Current (In)
800A
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
268mm
Weight
10.845kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
