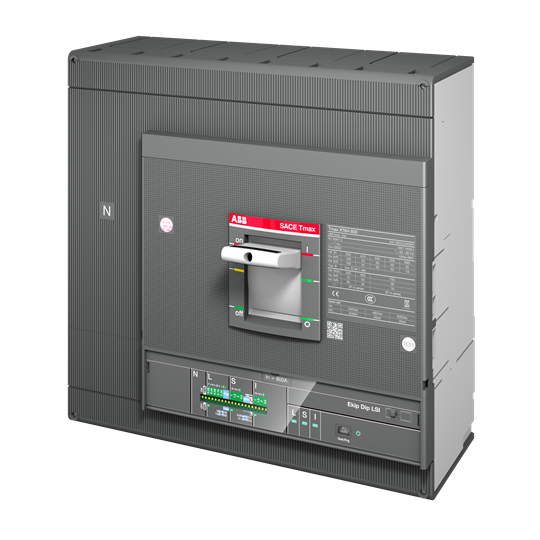

ABB 1SDA100776R1 Moulded Case Circuit Breaker 690VAC 800A 4-P 70kA Ekip Dip LSI Front For: XT6H

Product Code: 1SDA100776R1

  • MCCB with 800 A rated current
  • Handles up to 690 VAC and 8 kV impulse
  • Ekip Dip LSI trip unit for reliability
  • Breaking capacity of 70 kA
  • Front connection, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
53.4W
Rated Current (In)
800A
Trip Curve
Ekip Dip LS/I
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
268mm
Weight
12kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
25kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
25kA
