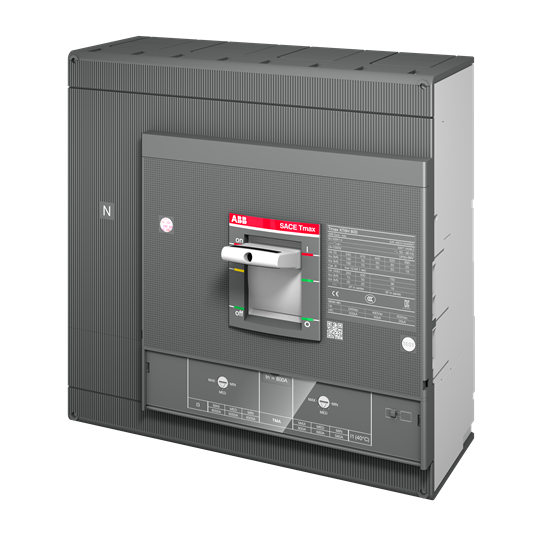

ABB 1SDA100775R1 Moulded Case Circuit Breaker 690/750VAC/VDC 800A 4-P TMA 4000-8000A Front For: XT6H

Product Code: 1SDA100775R1

  • MCCB with 800 A rated current capacity
  • Supports voltage up to 690/750 VAC/VDC
  • TMA trip unit for reliable protection
  • IP20 protection and front connection type
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Long Time Overload Protection Adjustment Range
560 to 800 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Power Loss
54.2W
Rated Current (In)
800A
Trip Curve
TMA
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
268mm
Weight
12kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
25kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
25kA

Documents

IPD Product Catalogue V17
