Specifications

Product Type MCCB	Brand ABB	Series XT6S
Application Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Instantaneous Protection Adjustment Range 1...10xIn	Long Time Overload Protection Adjustment Range 0.4...1xIn	Max. Rated Operation AC Voltage (Ue) 690V
Type of Protection Trip Unit Electronic	Frame Size Rating XT6 (800 Frme)	Rated Current (In) 800A
Rated Frequency 50Hz to 60Hz	Trip Curve Ekip Dip LSI	Electrical Life 5000
No. of Poles 4P

Frame Size

XT6 (800 Frme)

Housing Material

Thermoset insulating material (moulded case)

Depth 103.5mm	Height 268mm	Weight 12kg
Width 280mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -40°C and +70°C
Operating Temperature -25°C and +70°C	IP Rating IP20

Standards and Approvals

IEC 60947-2

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz

100% of Icu

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz

50kA

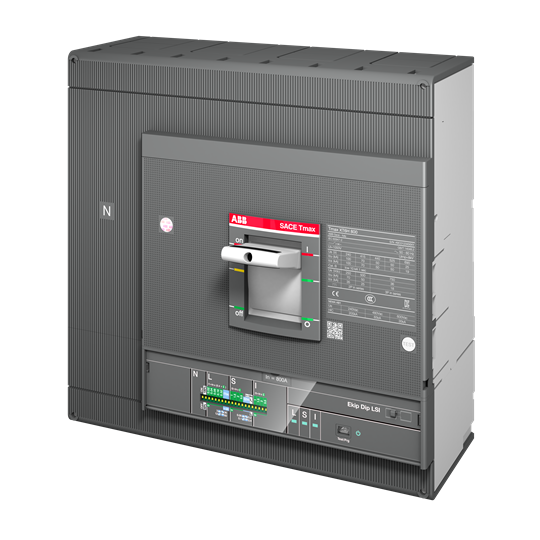

ABB 1SDA100756R1 Moulded Case Circuit Breaker 690VAC 800A 4-P Ekip Dip LSI Front For: XT6S
