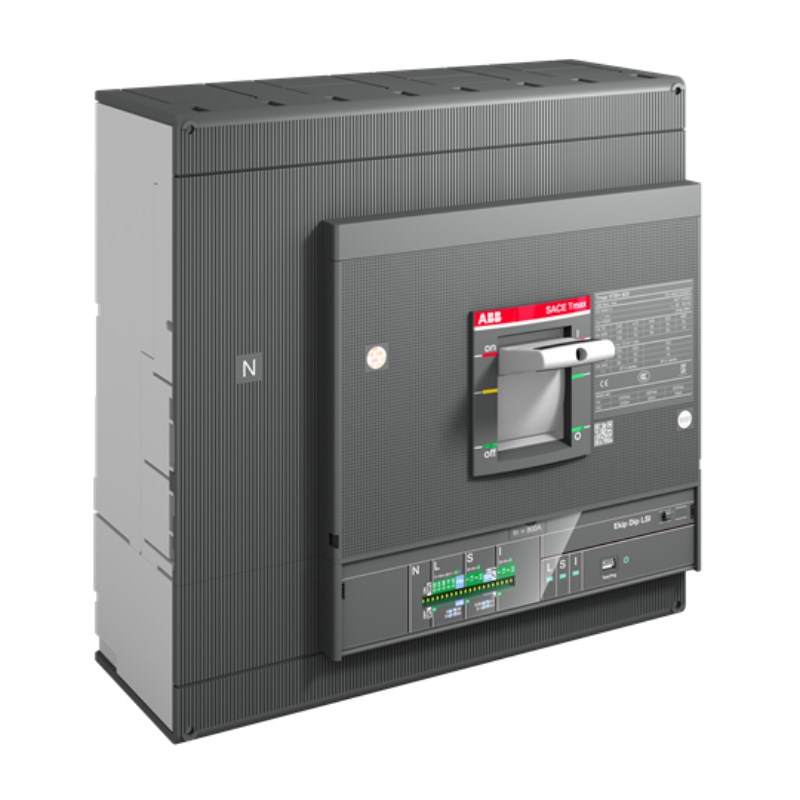

ABB 1SDA100734R1 Moulded Case Circuit Breaker 690VAC 800A 4-P 36kA Ekip Dip LSI Front

Product Code: 1SDA100734R1

  • MCCB with 800 A rated current
  • Rated voltage of 690 VAC
  • Ekip Dip LSI trip unit
  • Breaking capacity of 36 kA
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690 V AC
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
EL
Power Loss
83.5 W
Rated Current (In)
1000 A
Trip Curve
Ekip Dip LSI
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
103.5 mm
Height
268 mm
Weight
12000 g
Width
280 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
20 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20 kA
