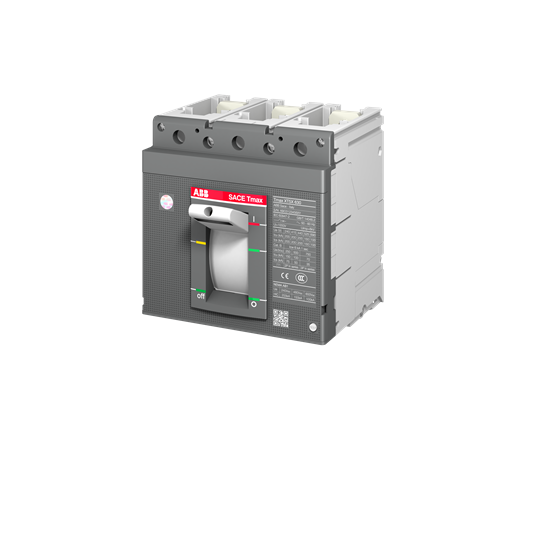

ABB 1SDA100567R1 Moulded Case Circuit Breaker 3-P 690/750VAC/DC 630A Front

Product Code: 1SDA100567R1

  • Rated for 630 A current capacity
  • Withstands impulse voltage up to 8 kV
  • Insulation voltage rated at 1000 V
  • Supports both 690/750 VAC/VDC
  • Front connection type with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Breaking Part
Brand
ABB
Series
SACE Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
3.425kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
200kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
80kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
80kA

Documents

IPD Product Catalogue V17
