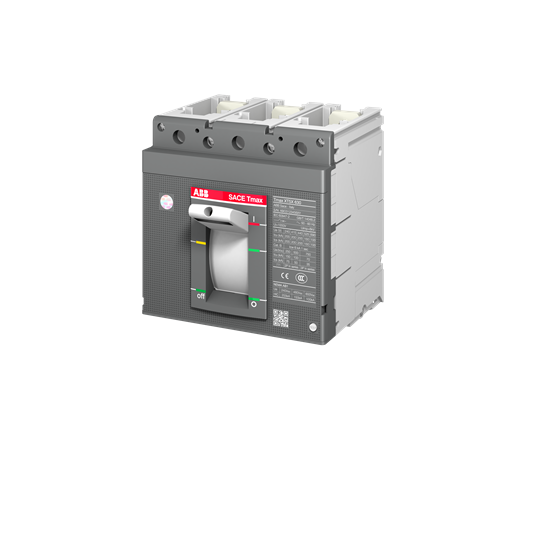

ABB 1SDA100563R1 Moulded Case Circuit Breaker 3-P 690/750VAC/DC 630A Front

Product Code: 1SDA100563R1

  • Suitable for up to 630 A current
  • Withstands impulse voltage of 8 kV
  • Rated for 690/750 VAC/VDC applications
  • Front connection with IP20 protection
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Breaking Part
Brand
ABB
Series
SACE Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
3.425kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
70kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
70kA
