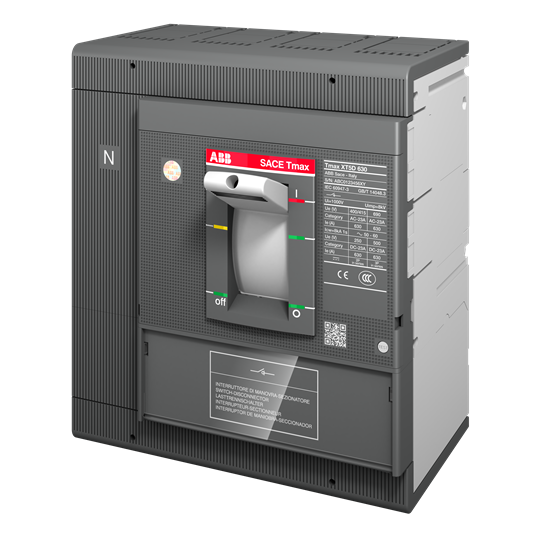

ABB 1SDA100549R1 Switch Disconnector IP20 630A 4-P F Version 690/750VAC/DC

Product Code: 1SDA100549R1

  • Switch Disconnector, 630 A capacity
  • Compact size: 186x205x103.5 mm
  • Handles up to 690/750 VAC/VDC
  • Front connection, IP20 protection
  • Supports 4 poles, withstands 8 kV impulse
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
690V
Rated Operational Current AC23-A (Ie)
630A
Rated Short Time Withstand Current (Icw)
7600A
Rated Uninterrupted Current (Iu)
630A
Power Loss
143.4W
Rated Current (In)
630A
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
5.6kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
