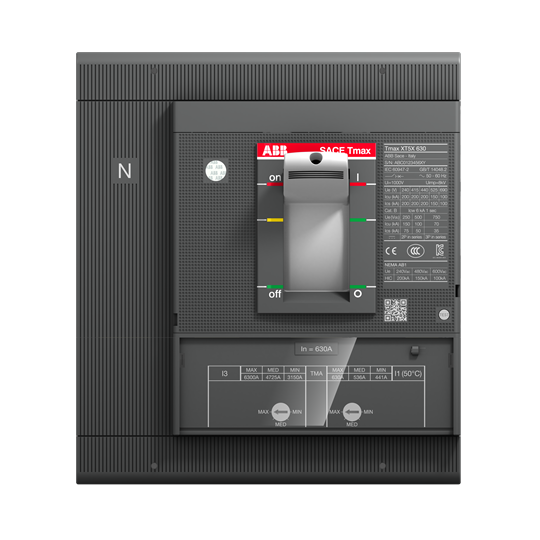

ABB 1SDA100525R1 Moulded Case Circuit Breaker 690/750VAC/VDC 630A 4-P 70kA TMA 3150-6300A Front For: XT5H

Product Code: 1SDA100525R1

  • Rated Current: 630 A
  • Breaking Capacity: 70 kA
  • Trip Unit Type: TMA
  • Degree of Protection: IP20
  • Complies with IEC60947-2
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Long Time Overload Protection Adjustment Range
441 to 630 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Power Loss
47.8W
Rated Current (In)
630A
Trip Curve
TMA
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
5.6kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
30kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
40kA

Documents

IPD Product Catalogue V17
