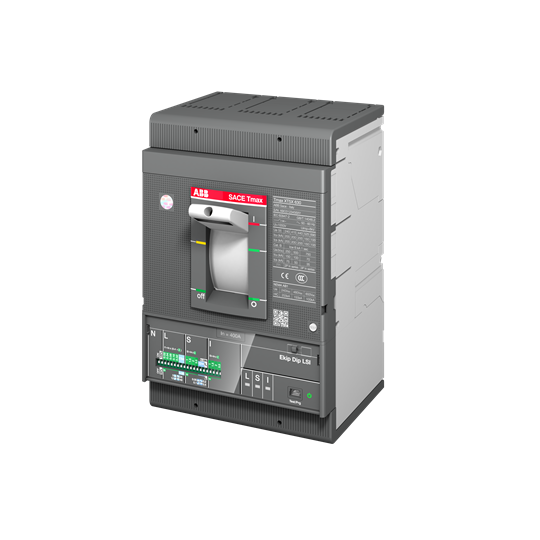

ABB 1SDA100504R1 Moulded Case Circuit Breaker 690VAC 400A 3-P 70kA Ekip Dip LSI Front For: XT5H

Product Code: 1SDA100504R1

  • MCCB with 400 A rated current
  • Handles up to 690 VAC
  • Breaking capacity of 70 kA
  • Ekip Dip LSI trip unit included
  • Front connection, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
19W
Rated Current (In)
400A
Trip Curve
Ekip M Dip I
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
4.82kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
40kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
40kA

Documents

IPD Product Catalogue V17
