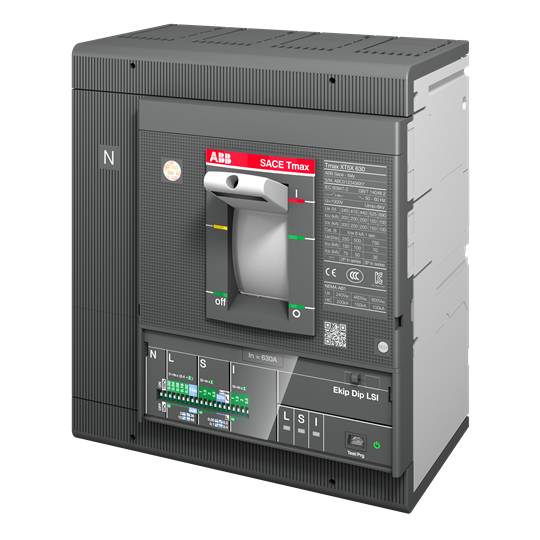

ABB 1SDA100467R1 Moulded Case Circuit Breaker 690VAC 630A 4-P 50kA Ekip Dip LSI Front For: XT5S

Product Code: 1SDA100467R1

  • MCCB with 630 A rated current
  • High breaking capacity of 50 kA
  • Ekip Dip LSI trip unit for precision
  • Front connection type for easy access
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
45W
Rated Current (In)
630A
Trip Curve
Ekip Dip LS/I
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
6.4kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
25kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
25kA
