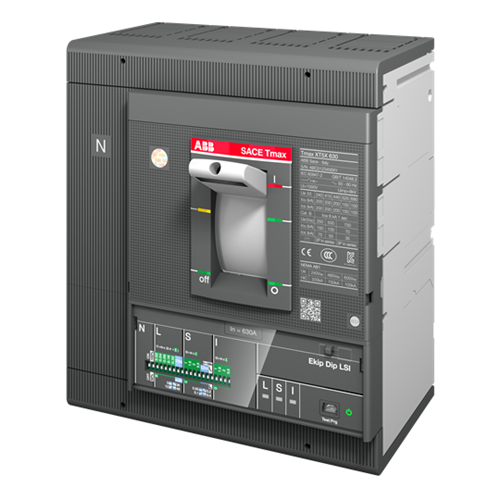

ABB 1SDA100465R1 Moulded Case Circuit Breaker 690VAC 320A 4-P 50kA Ekip Dip LSI Front For: XT5S

Product Code: 1SDA100465R1

  • MCCB with 320A rated current
  • Handles up to 690 VAC, 50kA breaking capacity
  • Ekip Dip LSI trip unit, EL release type
  • Front connection, 4-pole design
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
11.6W
Rated Current (In)
320A
Trip Curve
Ekip Dip LS/I
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
6.4kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
25kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
25kA
