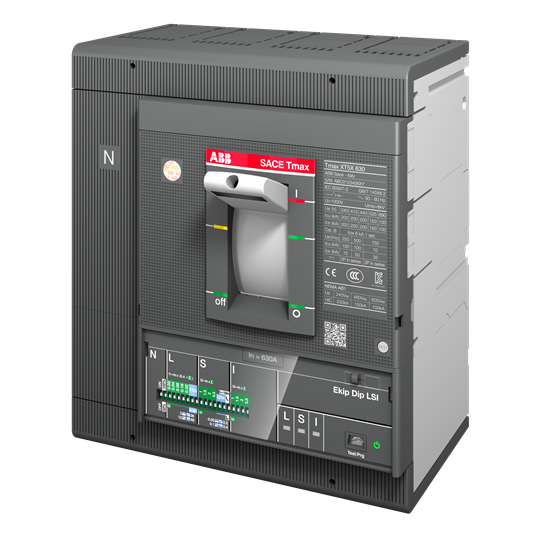

ABB 1SDA100395R1 Moulded Case Circuit Breaker 690VAC 320A 4-P 36kA Ekip Dip LSI Front For: XT5N

Product Code: 1SDA100395R1

  • Rated current of 320 A for robust performance
  • Handles up to 690 VAC and 1000 V insulation
  • Ekip Dip LSI trip unit for reliable protection
  • Breaking capacity of 36 kA ensures safety
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
11.6W
Rated Current (In)
320A
Trip Curve
Ekip Dip LS/I
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
6.4kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA

Documents

IPD Product Catalogue V17
