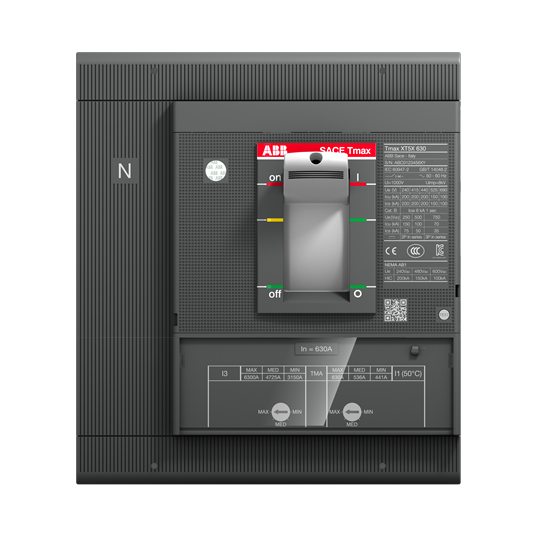

ABB 1SDA100387R1 Moulded Case Circuit Breaker 690/750VAC/VDC 500A 4-P 36kA TMA 2500-5000A Front For: XT5N

Product Code: 1SDA100387R1

  • MCCB with 500 A rated current
  • Handles 690/750 VAC/VDC
  • 4-pole design for versatile use
  • Breaking capacity of 36 kA
  • IP20 protection for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Long Time Overload Protection Adjustment Range
350 to 500 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Power Loss
33.5W
Rated Current (In)
500A
Trip Curve
TMA
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
5.6kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA
