Products

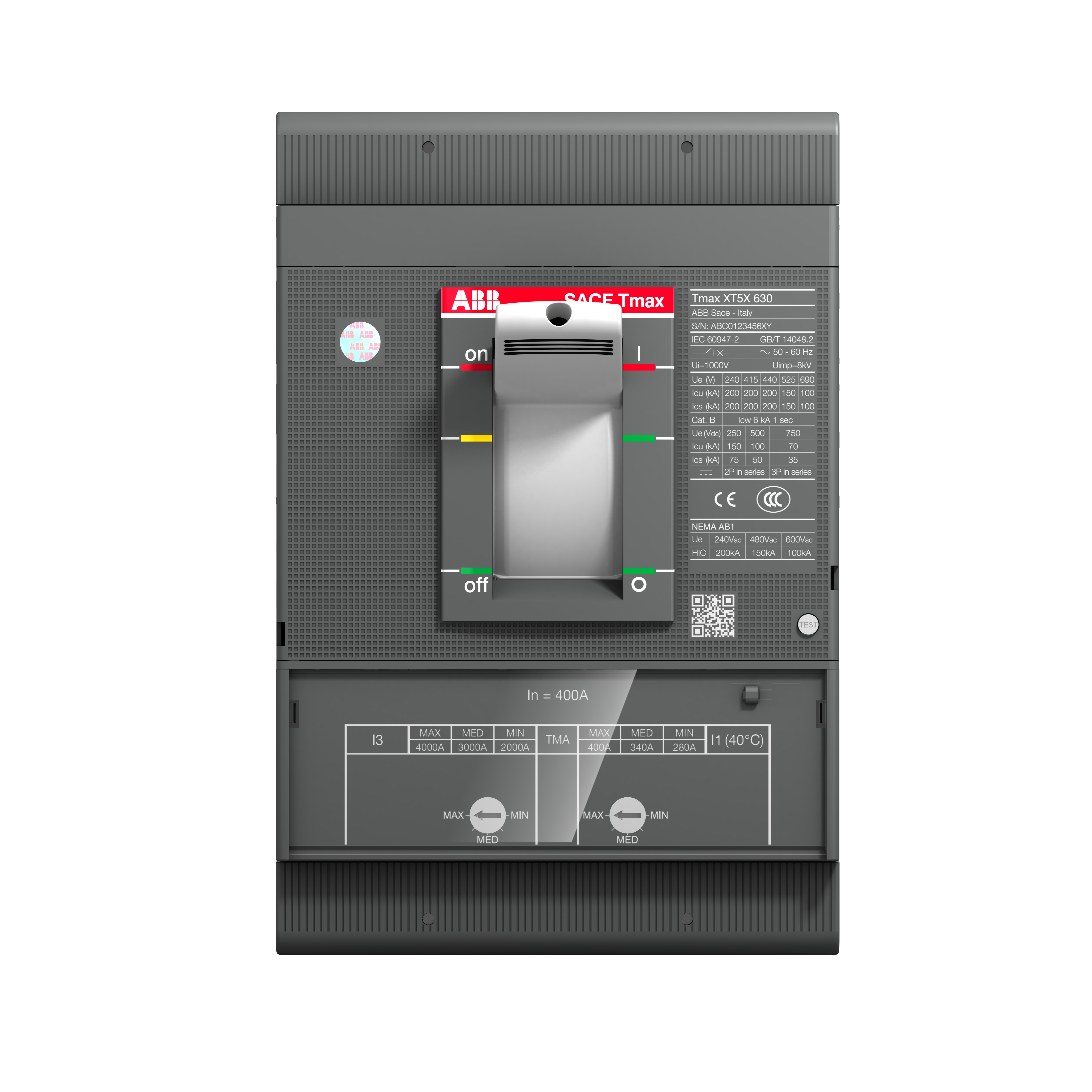

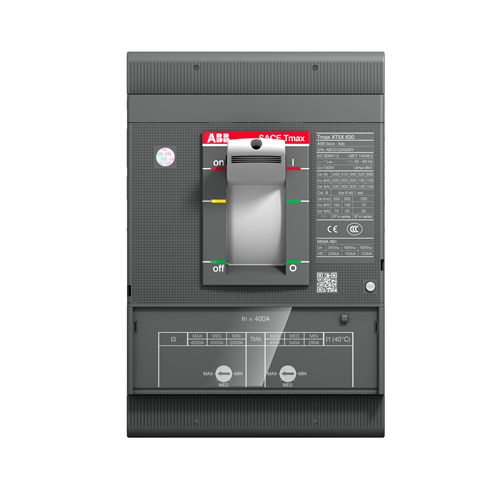

ABB 1SDA100375R1 Moulded Case Circuit Breaker 690/750VAC/VDC 400A 3-P 36kA TMG 1000-2000A Front

Product Code: 1SDA100375R1

  • MCCB with 400 A rated current
  • Rated voltage up to 750 VAC/VDC
  • Breaking capacity of 36 kA
  • Front connection, 3 poles
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Generator Protection

Electrical

Long Time Overload Protection Adjustment Range
280 to 400 A
Max. Rated Operation AC Voltage (Ue)
690 V AC
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
TM
Power Loss
24.1 W
Rated Current (In)
400 A
Trip Curve
TMG
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
103.5 mm
Height
205 mm
Weight
4775 g
Width
140 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
20 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20 kA

Documents

IPD Product Catalogue V17
