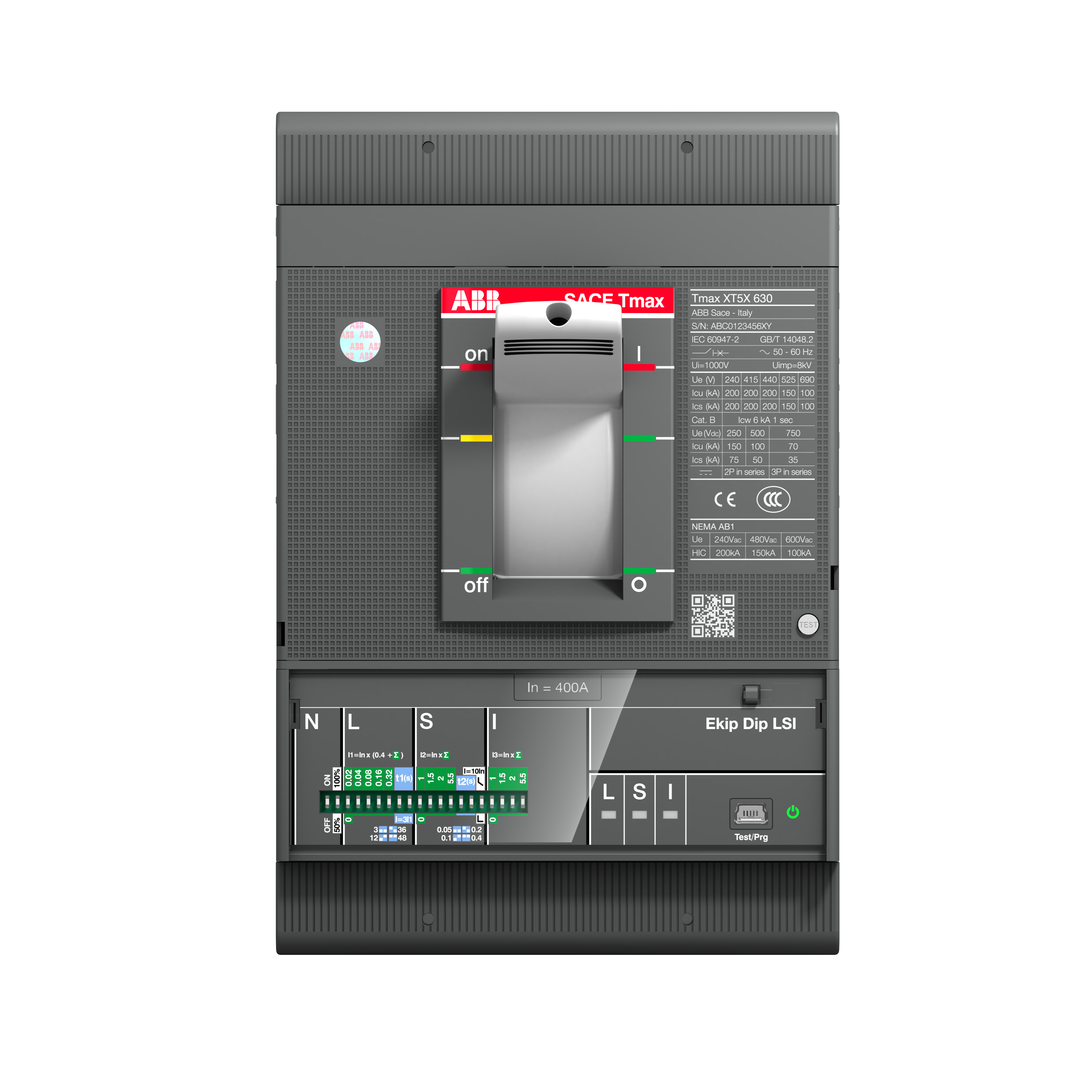

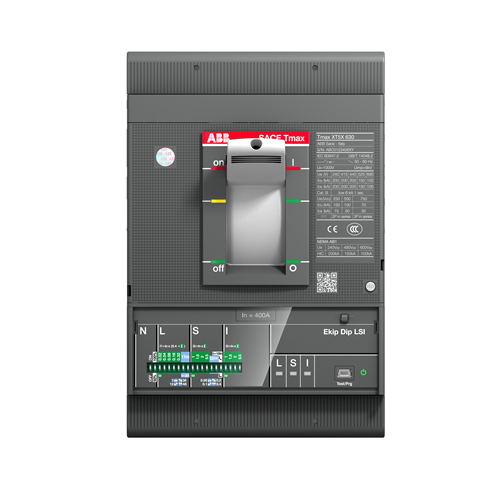

ABB 1SDA100363R1 Moulded Case Circuit Breaker 690VAC 630A 3-P 36kA Ekip Dip LSI Front

Product Code: 1SDA100363R1

  • MCCB with 630 A rated current
  • Withstands impulse voltage of 8 kV
  • Rated insulation voltage of 1000 V
  • Breaking capacity of 36 kA
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690 V AC
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
EL
Power Loss
24.1 W
Rated Current (In)
400 A
Trip Curve
Ekip Dip LSIG
Terminal Type
Front
Electrical Life
5000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
103.5 mm
Height
205 mm
Weight
4820 g
Width
140 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
20 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20 kA
