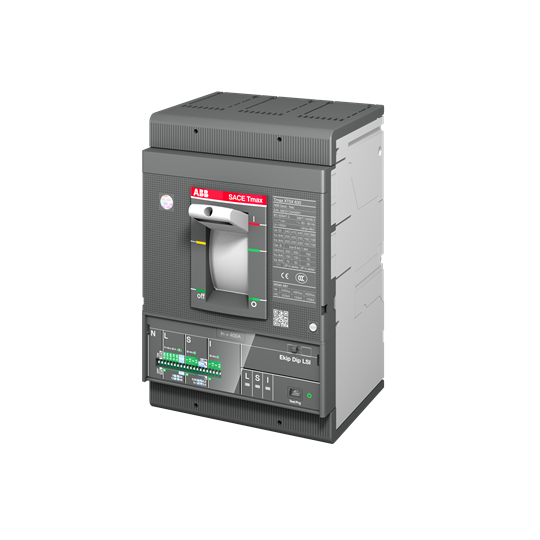

ABB 1SDA100356R1 Moulded Case Circuit Breaker 690VAC 250A 3-P 36kA Ekip Dip LSI Front For: XT5N

Product Code: 1SDA100356R1

  • MCCB with 250 A rated current
  • Handles up to 690 VAC voltage
  • Ekip Dip LSI trip unit for precision
  • Breaking capacity of 36 kA
  • Compact design, 140 mm width
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Power Loss
8W
Rated Current (In)
250A
Trip Curve
Ekip Dip LSI
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
4.82kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA
