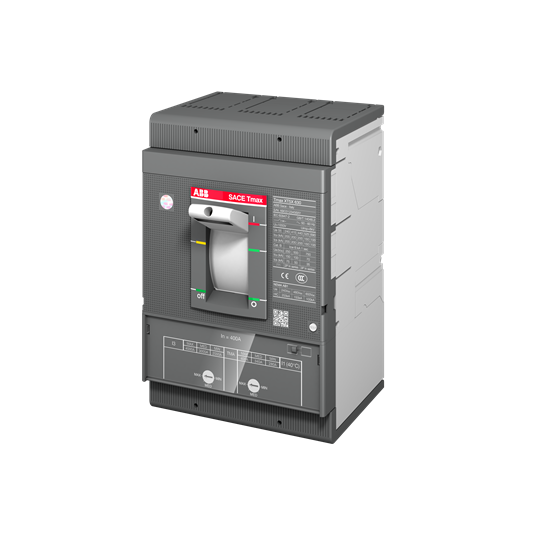

ABB 1SDA100344R1 Moulded Case Circuit Breaker 690/750VAC/VDC 320A 3-P 36kA TMA 1600-3200A Front For: XT5N

Product Code: 1SDA100344R1

  • MCCB with 320 A rated current
  • Withstands impulse voltage up to 8 kV
  • Rated insulation voltage of 1000 V
  • Breaking capacity of 36 kA
  • Front connection, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

Long Time Overload Protection Adjustment Range
224 to 320 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Power Loss
16.9W
Rated Current (In)
320A
Trip Curve
TMA
Terminal Type
Front
Electrical Life
7000 cycles
Mechanical Life
20000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
4.775kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA
