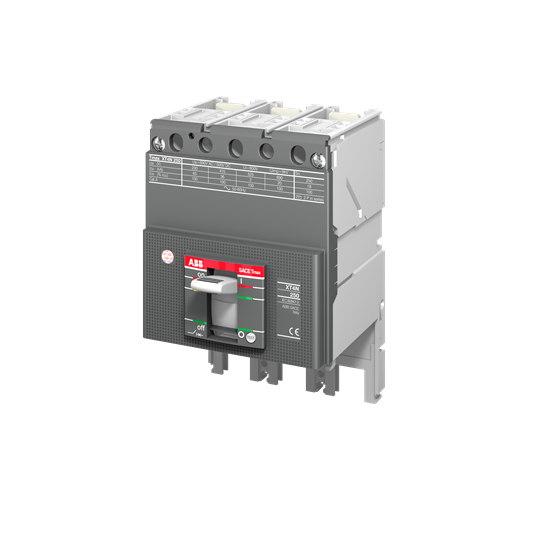

ABB 1SDA100265R1 Moulded Case Circuit Breaker 3-P 690/750VAC/DC 160A Front

Product Code: 1SDA100265R1

  • Accessory rated at 160 A current
  • Withstands impulse voltage up to 8 kV
  • Insulation voltage rated at 1000 V
  • Breaking capacity of 100 kA
  • Front connection type, IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Breaking Part
Brand
ABB
Series
SACE Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Terminal Type
Front
Electrical Life
10000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
8.2kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
200kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
100kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
100kA

Documents

IPD Product Catalogue V17
