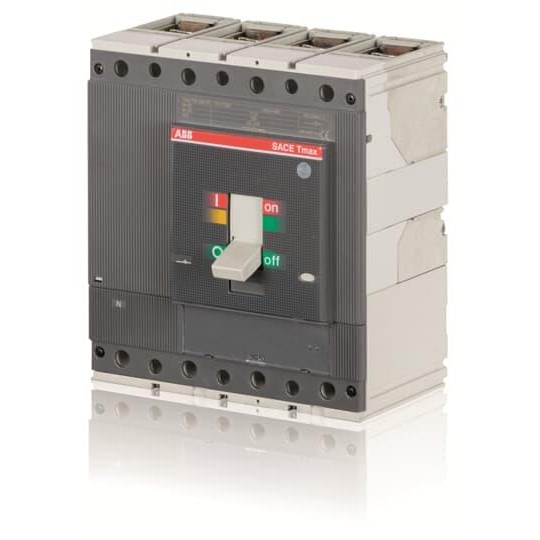

ABB 1SDA076898R1 Switch Disconnector IP20 500A 4-P F Version 1500VDC

Product Code: 1SDA076898R1

  • Switch Disconnector with 500 A rating
  • Compact size: 186x205x104.5 mm
  • High voltage capacity: 1500 VDC
  • IP20 protection for indoor use
  • Withstands up to 6 kA short time current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax T

Electrical

Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1500V DC
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
6000A
Rated Uninterrupted Current (Iu)
500A
Power Loss
30W
Rated Current (In)
500A
Mechanical Life
7500 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
104.5mm
Height
205mm
Weight
4.15kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC, CE
